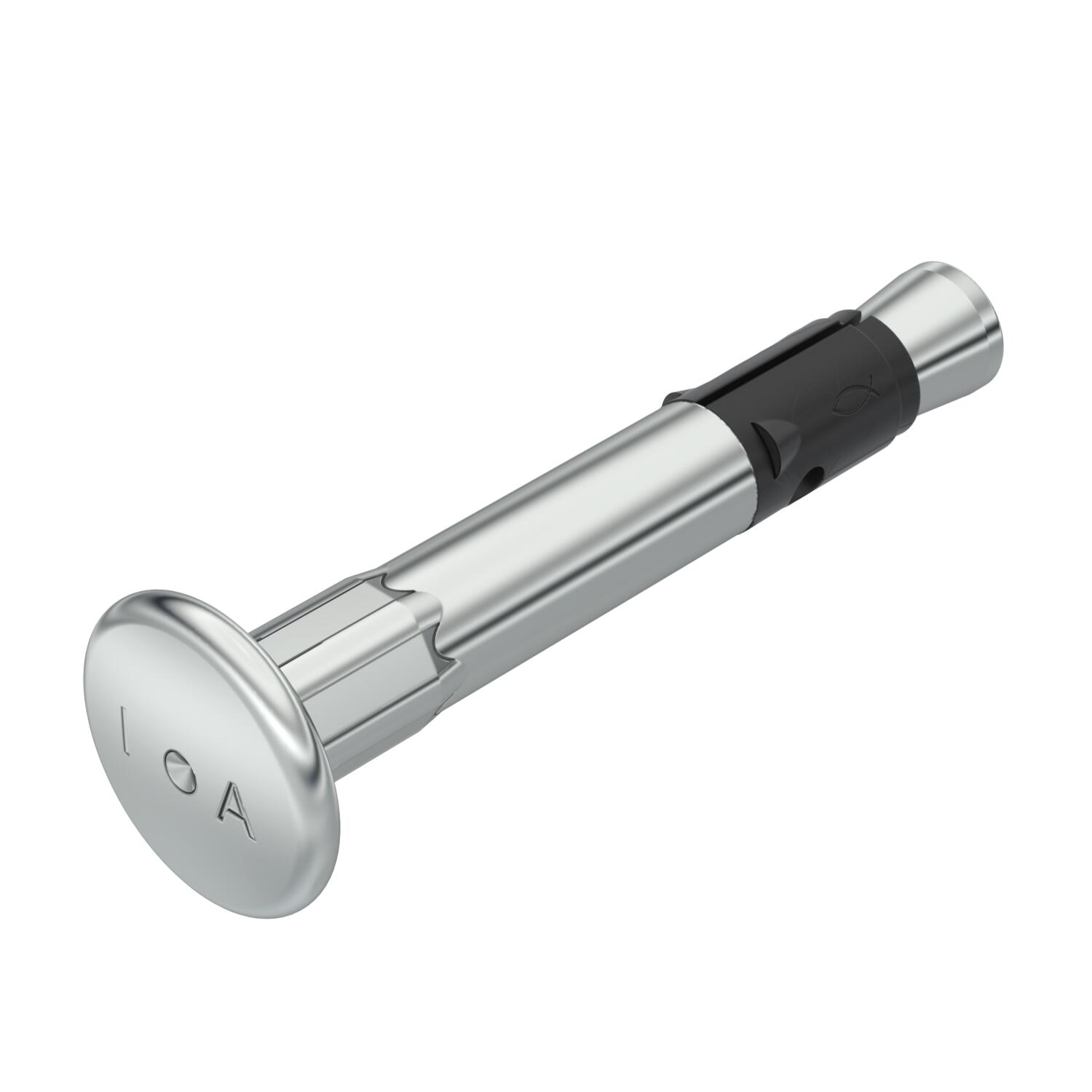

Nail tie with nail head G

Réf. 3499010 | EAN 4012197507336

Description du produit
Description du produit
Nail tie with nail head for the anchoring of, for example, fire protection products, mounting rails, metal clips, substructures made of wood and metal, etc. on walls and ceilings from cracked concrete in indoor and outdoor areas. To knock in with a hammer or rotary drill When loads occur the nail tie spreads out automatically and anchors itself in the drill hole. Rustproof and highly corrosion-resistant. Fire-safety tested, fire protection class R 120 according to European Technical Assessment ETA-06/0175.
  • Communautés Européennes, Déclaration de conformité CE selon les directives CE
Caractéristiques techniques

Caractéristiques techniques

Autotaraudeuse non
Cote L 42,5 mm
Couleur zinc
Diamètre de perçage min. 6 mm
Dimension 6x42,5
Dispositif de fixation autres
Épaisseur de serrage 5 mm
Homologations existantes oui
Longueur 42,5 mm
Matériau Acier
Modèle à enforcer
Profondeur de perçage 45 mm
Surface galvanisé
Tous les types

Tous les types

Type Filetage Réf. Quantité Plus petite unité de vente
FNAII 6x30/5 3499010
100 Pièce
FNAII 6x30/5A4 3499014
50 Pièce
FNAII 6x30/5A5 3499016
50 Pièce
Téléchargements

Déclaration de conformité UE FNAII 6x30/5 / 3499010 , 0.11MB , pdf
Télécharger

Aucun texte d'appel d'offres n'est disponible pour ce produit
